 Dimmer switch?

View previous topic View next topic Go down
AuthorMessage
mikeyh



Location : Dordogne France

PostSubject: Dimmer switch?   Thu Mar 25, 2010 5:11 pm

Can i use a household dimmer switch fitted in a wagon to control the speed of the battery powered trains?

Mikey
Back to top Go down
Carl Hibbs
Admin


Location : Haute Normandie - visitors welcome

PostSubject: Re: Dimmer switch?   Thu Mar 25, 2010 5:56 pm

Highly unlikely Mikey.

They are normally meant for controlling Alternating Current which behaves totally different to the Direct Current of batteries. As yet no one has invented an AC battery although it continues to do the rounds as an April fool's time 'new invention'.
Back to top Go down
tram47



Location : Aquitaine (France)

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 7:06 am

mikeyh wrote:
Can i use a household dimmer switch fitted in a wagon to control the speed of the battery powered trains?

Mikey

explications
Back to top Go down
mikeyh



Location : Dordogne France

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 7:51 am

C'est une methode moins cher pour controle la vitesse d'un locomotive
I was looking for a method less expensive to control the speed of a battery powered train.

A dimmer switch is a switch normally used to diminish the light in a room

mikey
Back to top Go down
tram47



Location : Aquitaine (France)

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 8:25 am

il y a encore moins cher !!
un potentiomètre de 470 K. , une "puce" électronique type LM 317 , une résistance ,un condensateur 1000 microFarads, 2 diodes .
Back to top Go down
French Chuffed



Location : Droitwich UK

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 9:56 am

If you use a variable resistor Mikey there is a lot of power loss as heat, the expensive controllers use electronic wizardry so the battery will last a lot longer on each charge.
Back to top Go down
Carl Hibbs
Admin


Location : Haute Normandie - visitors welcome

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 5:01 pm

As Daniel said....

I think we've covered this before somewhere.

A transistor, pot, fixed resistor and a switch.

I have a simple circuit and can make one for less than a couple of euros if you want.
Back to top Go down
mikeyh



Location : Dordogne France

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 5:15 pm

Yes please Carl. I've experimented with the vibrator (the electrics of course) but couldnt get it to work. I've got various batteries from 7.2 to 14v but they all make the train go just too fast/ I can repair guitar amps no prob, but trains? I looked on the net for a circuit but its double dutch to me!



mikey
Back to top Go down
tram47



Location : Aquitaine (France)

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 5:27 pm

tout est ici !!!! the text or the page Web URL all is here !!!!!!
http://www.ptitrain.com/electronique/meccano/pages2002/alim025.htm

et le reste à Châtellerault !!!!! and the after to Châtellerault !!!!!!
Back to top Go down
Carl Hibbs
Admin


Location : Haute Normandie - visitors welcome

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 6:09 pm

That's a good circuit using one of the many voltage regulator chips that are widely available.

This was the article we did before (about the vibrator too....)

speed controller

The transistor circuit is there too. I will make one up Mikey and bring it to Chatellerault.
Back to top Go down
Bearcastle



Location : Brie

PostSubject: Re: Dimmer switch?   Thu Apr 22, 2010 7:56 pm

C'est un variateur de lumière, le souci la plupart fonctionne en alternatif 220 v.

Donc pas compatible avec nos circuit continu.
*

Il existe des kits, mais c'est dans les 30 € sans boitier, mieux vaut acheter un variateur LGB sur ebay.

http://www.conrad.fr/webapps/kit_variateur_de.html

http://www.plastimo.com/fr/pdfbase/39444%28fr%29.pdf
Back to top Go down
http://scfbrie.webs.com/
dtsteam



Location : Preston, England

PostSubject: Re: Dimmer switch?   Tue Apr 27, 2010 7:03 am

Unfortunately, transistors are a mystery to me, so I bodged together a diode speed controller a few years ago with 40V 4A doides, which are dirt cheap when you buy, say, a hundred. The controller has worked fine for the last three years. The connector block isn't really laziness Wink but its an easy way of playing with the settings. Having said that, I haven't touched them since I built it.....
I'm sure you could build something similar with a lot less diodes for battery control - I use them mainly as voltage reducers. They even work on DCC, wired back to back, to slow the trains as they go through station.
I'll stop rambling and go to work
Back to top Go down
tram47



Location : Aquitaine (France)

PostSubject: Re: Dimmer switch?   Thu May 06, 2010 7:05 pm

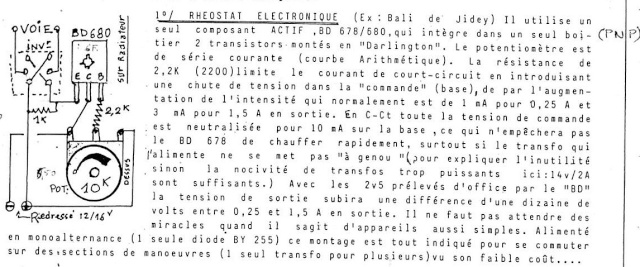

réostat électronique ( faible puissance ) ,electronic réostat (weak power)
Back to top Go down
